6SL3210-5FE13-5UA0西門子V90驅動器3.5KW 6SL321O-5FE13-5UAO

西門子V90驅動器3.5KW

上海地友自動化設備有限公司本著“以人為本、科技先導、顧客滿意、持續改進”的工作方針，致力于工業自動化控制領域的產品開發、工程配套和系統集成，擁有豐富的自動化產品的應用和實踐經驗以及雄厚的技術力量，尤其以 PLC復雜控制系統、傳動技術應用、伺服控制系統、數控備品備件、人機界面及網絡/軟件應用為公司的技術特長，幾年來，上海地友自動化設備有限公司在與德國 SIEMENS公司自動化與驅動部門的緊密合作過程中，建立了良好的相互協作關系。

主要優勢產品西門子：S7-200CN、S7-200、Smart200、S7-300、S7-400、S7-1200、觸摸屏、6FC、6SN、S120、V10、V20、V60、V80、G110、G120、6RA、伺服數控備件、NCU、MM系列變頻器。

名  稱：V90伺服驅動器 3.5KW

型  號：6SL3210-5FE13-5UA0

參  數：SINAMICS V90, 電壓3AC 400V 功率3.5KW 重量5.65KG

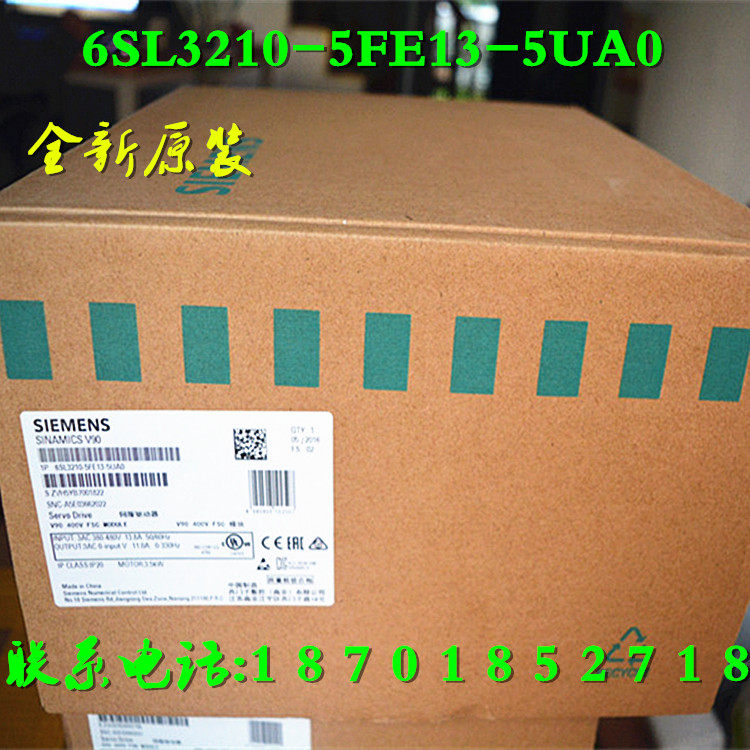

產品圖片：

6SL3210-5FE13-5UA0

SINAMICS V90 INPUT: 3AC 380-480V 15%/+10% 13.8A 45-66HZ OUTPUT: 0-INPUT V 11.0A 0-330HZ MOTOR:3.5KW PROTECTION: IP20 FRAME SIZE C 140X260X240HXD

更多圖片

捆綁銷售：

 1FL6092-1AC61-0AA1

SIMOTICS S-1FL6-1FL6 SUPPLY VOLTAGE 400V 3AC PN=3.5KW;NN=2000RPM M0=22NM;MN=16.7NM SHAFT HEIGHT 90MM ENCODER INCREMENTAL TTL 2500PPR WITH SHAFT KEY, TOLERANCE N WITHOUT HOLDING BRAKE PROTECTION CLASS IP65 WITH OIL SEAL MATCHING DRIVE SINAMICS V70&V90

 6SL3210-5FE12-0UA0

SINAMICS V90 INPUT: 3AC 380-480V -15%/+10% 9.8A 45-66HZ OUTPUT: 0-INPUT V 7.8A 0-330HZ MOTOR:2.0/2.5KW PROTECTION: IP20 FRAME SIZE B, 100X180X220(HXD)

 1FL6067-1AC61-0AA1

SIMOTICS S-1FL6-1FL6 SUPPLY VOLTAGE 400V 3AC PN=2KW;NN=2000RPM M0=15NM;MN=9.55NM SHAFT HEIGHT 65MM ENCODER INCREMENTAL TTL 2500PPR WITH SHAFT KEY, TOLERANCE N WITHOUT HOLDING BRAKE PROTECTION CLASS IP65 WITH OIL SEAL MATCHING DRIVE SINAMICS V70&V90

 6SL3210-5FE11-5UA0

SINAMICS V90 INPUT: 3AC 380-480V 15%/+10% 6.6A 45-66HZ OUTPUT: 0-INPUT V 5.3A 0-330HZ MOTOR:1.5/1.75KW PROTECTION: IP20 FRAME SIZE B, 100X180X220(HXD)

 1FL6064-1AC61-0AA1

SIMOTICS S-1FL6-1FL6 SUPPLY VOLTAGE 400V 3AC PN=1.5KW;NN=2000RPM M0=8NM;MN=7.16NM SHAFT HEIGHT 65MM ENCODER INCREMENTAL TTL 2500PPR WITH SHAFT KEY, TOLERANCE N WITHOUT HOLDING BRAKE PROTECTION CLASS IP65 WITH OIL SEAL MATCHING DRIVE SINAMICS V70&V90

SIMOTICS GP Alum. 1LE1092 · SIMOTICS SD Cast-iron 1LE1592

• 訂貨數據
•
• 產品信息
•
• 組態工具

比較

更多動作

	產品編號 / 產品說明		目錄價格 / 您的價格
		1LE1592-2BB0.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1220B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS225S	顯示價格
組態
		1LE1592-2BB2.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1222B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS225M	顯示價格
組態
		1LE1592-2CB2.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1252B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS250M	顯示價格
組態
		1LE1592-2DB0.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1280B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS280S	顯示價格
組態
		1LE1592-2DB2.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1282B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS280M	顯示價格
組態
		1LE1592-3AB0.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1310B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS315S	顯示價格
組態
		1LE1592-3AB2.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1312B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS315M	顯示價格
組態
		1LE1592-3AB4.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1314B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS315L	顯示價格
組態
		1LE1592-3AB5.-.... SIMOTICS SD - VSD10 MOTOR TYPE: 1CV1315B IEC LV-MOTOR, ASM-KL SELF-VENTIL., BASIS EFFICIENCY TEMP. CL. 155(F) ACC.TO 130(F) CAST-IRON HOUSING FOR OPERATION WITH INVERTER 4POLE FS315L	顯示價格
